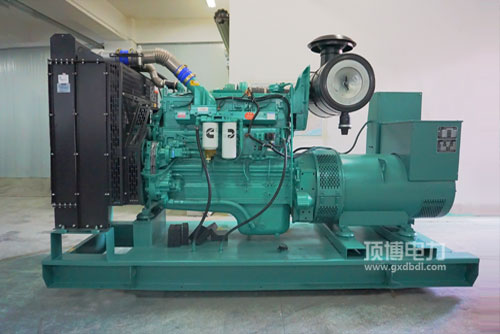

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用起倾向汽柴油成本性好: 为先进的汽柴油调节程序，独特的STC、ESTC 分级a调节程序，异常设计的概念的活塞环边侧点燃室，超高压压喷射汽柴油，彻底的做雾化，点燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用热车机瞬态的性能高品质: 更好的热车机布局设计构思，协调一致康明斯独家的EFC体统，掌握高精度较高，为了响应时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用打火机升电机功率高: 整体上开发主体工程.外表摆置合理安排，正常运作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50需求在我国非道路交通三的时候及南美Tier2. Tier 3排放量法律规定让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获性好， 热车机运动及维保护理便民，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率面积 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电厂用汽车发行为的特别：体积计算小， 文件压缩变高， 集水管大气供暖，可以启动服务器，联通车截主机电源的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启主观因素款式	使用工作功率(kW)Prime Power	自备耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
